Elves general hospital nursing intercom system (IP network, two-way radio, NN series) can choose wireless visual version, (information display, call, intercom, radio, video, sound recording or video recording) liuhe a system based on LAN (across different network segment routing) transmission technology, dedicated to hospital call, intercom between nurses and sickbed patients; It can also be used in nursing homes, nursing homes, nursing homes, maternity centers and other places that need nursing care.

Hospital care intercom system (IP network) wiring diagram

The system adopts the digital audio and video technology with the independent intellectual property right of spritong, which completely solves the echo and scream of network intercom. Video USES h. 264, broadcast USES MP3 and call USES 32K audio sampling.

The system has the following functions:

Touch display:

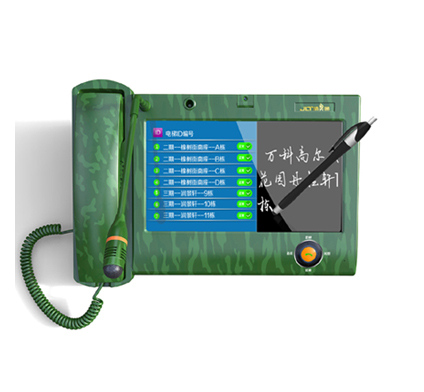

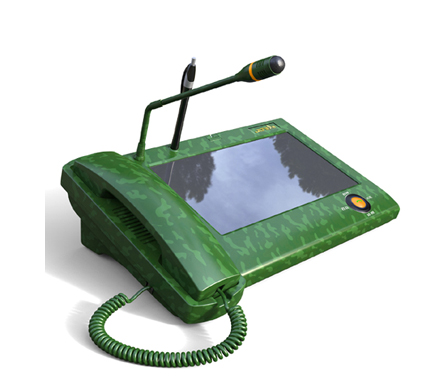

· main machine of nurse station: operate with full touch screen, each touch button corresponds to a sickbed extension, and each touch button

Patient details can be added to, or HIS data can be displayed on.

· ward door machine: it is operated with full touch screen, which can display patient information, name and photo of responsible doctor, name and photo of responsible nurse in the ward.

· doctor host: touch button, LCD display.

· sickbed extension: it supports color LCD display, which can display patient information, physical examination information, and check treatment information, cost information and equipment information.

Call intercom:

· bedside call intercom: patients can call the main machine of the nurse station and the machine at the entrance of the ward through the bedside extension. The main machine of the nurse station has two calling modes: hands-free and full-duplex handset, and the bedside extension

When calling, the nurse station host has voice broadcast, and can display the call information, the ward door machine can display the call information synchronously.

· emergency call of toilet: when an emergency occurs to a patient in the toilet, the pull rope of the emergency button will send an alarm signal; The button is waterproof.

· nursing reinforcement call: the sickbed extension supports nursing reinforcement call. The medical staff can call for more medical staff by pressing the "reinforcement" button on the extension.

· infusion alarm call: the hospital bed extension supports external infusion alarm. When the infusion is finished, the infusion can be stopped automatically and the alarm can be sent to the main engine of the nurse station.

· doctor and sickbed call intercom: the host computer can input the sickbed extension number and intercom with patients.

Visual intercom:

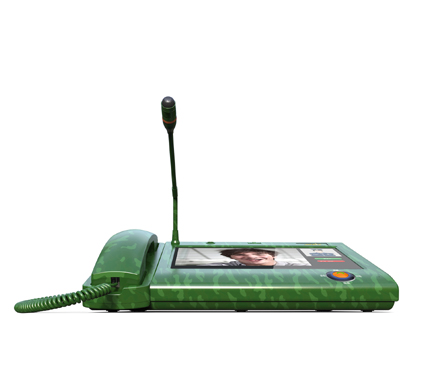

· intercom between nurse stations: the host of the nurse station is equipped with a camera, which can call each other and two-way visual intercom.

· doctor and nurse station intercom: the host computer of the doctor has a camera, and the host computer of the nurse station can call each other, two-way visual intercom.

· call intercom at the door of the ward: the door of the ward is equipped with a camera, which can call the host of the nurse station and the doctor's office, and can talk to each other visually.

· door machine call intercom: the door machine of the ward is equipped with a camera, and patients' families can call the host of the nurse station to realize visual intercom.

Audio and video recording:

· the host of the nurse station can record and record the calling process and the time of the call. The recording and recording files can be played directly on the host of the nurse station or exported to

Computer plays and stores; Support nurse station host idle, can automatically record and record files to the designated server.

Nurse station hosting:

· there is a "trusteeship" button on the host computer of the nurse station, which can be used to trusteeship the affiliated sickbed extension to other nurses station host for operation and management, and the machine can accept the sickbed at the same time

Machine call.

Broadcast, music:

· the host of the nurse station supports the whole area broadcasting, regional broadcasting, timing broadcasting and fire fighting broadcasting of the affiliated hospital bed extension; Broadcast mode supports mp3 file broadcast, propaganda broadcast and external

Pick up the audio source.

Call upload:

· when the main engine of the sickbed extension calling the nurse station fails to respond within the time limit, the system can transfer the call of the sickbed extension to the other designated on-duty main engine, and there is no response time after the time limit

Configurable (0-240 seconds).

· when the main machine of the nurse station is called, the system can transfer the call of the sickbed extension to other designated duty mainframe.

· the host of the nurse station can set up no response and upload time for timeout of different periods.

Call forwarding:

· call transfer to ward: before the nurse enters the ward, press the "enter nursing" button on the machine at the door of the ward. At this time, the nurse can use any extension in the room to answer other diseases

Call to the bed extension; When you leave, press this button again to remove the function.

· transfer the call to the door of the ward: when the extension of the sickbed is called, the other door machines can answer the extension call and talk to each other in both directions.

· transfer the call to the ambulatory nurse: when the hospital bed extension is called, the nurse in the corridor can answer the patient's call and intercom wirelessly with the hand-held walkie-talkie.

Nursing positioning:

· before the nurse enters the ward, press the "enter nursing" button on the machine at the door of the ward, the door light at the door of the room with this disease is always bright blue, and the corridor screen shows "XXXX room door machine nursing

"To indicate that the nurse is in the care of the ward; When leaving, press the key again to remove the nursing positioning.

Nursing logo:

· the bedside of the patient can display multiple state labels of nursing grade, measurement, diet, isolation and allergy, and each state of care can be represented by different colors of light, and the state label can be used

Set up automatic conversion on the nurse station host as directed.

Waiting for processing:

· after the main engine of the nurse station finishes the active call and intercom of the sickbed extension, the extension key on the main engine will always display the state of "waiting for processing", and the nurse needs to press it on the sickbed extension

Click the "call/cancel" button to cancel the status.

Voice broadcast:

· when the host of the nurse station and the host of the doctor receive the call, the call information can be broadcast by voice at the same time; And has regular voice reminder and medication reminder and other functions.

Call nurse:

· support the patient to call the nurse corresponding to the hospital bed by pressing the button on the extension. The wireless watch receiver equipped with the nurse can display the call information in real time.

Lighting control:

· bedside extension machine supports bedside light control function. The client can control the switch of his/her bedside lamp by holding the extension.

Television sound and radio:

· the sickbed extension supports TV audio function. Patients can change TV channels through the handheld extension (patients in the same ward can control their own TV independently, without interfering with each other)

It can listen to TV audio by earphone.

· the sickbed extension supports FM broadcasting function. The patient can switch to an FM radio station via the extension.

Door unlocking:

· at the gate of the ward, IC card swiping or password unlocking is supported; It can also support the visitor to call the host of the nurse station for visual intercom, by the host to unlock, to achieve the ward out

Visitor management.

Online detection of door machine:

· the management host can carry out online detection of each gate machine directly under management (ward and ward) in real time. When a door machine is not online, the host will use interface and voice simultaneously

This extension network fault is convenient for timely maintenance and repair.

LCD corridor display screen:

· the system supports access to liquid crystal display, which can display the call ward and sickbed extension Numbers.

List of LCD patients:

· the system supports access to liquid crystal display, which can display inpatient's name, room bed number, nursing grade and other conditions.

LCD information kanban:

· the system supports access to liquid crystal display, which can publish and display the number of inpatients, the number of inpatients, the number of surgeries, the number of vacant beds, the number of nursing grades, the nursing handover situation,

Medical staff on duty and messages for important matters.

Telephone answering:

· the system supports cordless phone access. The cordless phone can display the terminal extension number when the sickbed extension calls and can talk.

HIS butt:

· the system supports HIS docking to read and call patient information in HIS database.

Linkage control:

· the host of the nurse station can provide Web service, TCP instruction, UDP instruction, RS485 interface and switch quantity interface.

Fault self-check:

· startup fault self-check; Can prevent system collapse, virus invasion; Easy maintenance of system equipment.
